Electromagnetic Forming

Discover the advantages of electromagnetic forming (EMF), a cutting-edge non-contact metalworking technique that uses pulsed magnetic fields for high-speed fabrication. Learn about its applications, equipment setup, and how it transforms conductive materials like copper and aluminum into complex shapes efficiently and effectively.

Electromagnetic Metal Forming: Non-Contact High-Speed Fabrication

Table of contents
Introduction
Electromagnetic Forming Process Principles
Material Behavior in EMF
Tools for EMF
Applications of EMF
Conclusion
FAQ

The article “Electromagnetic Metal Forming: Non-Contact High-Speed Fabrication” covers a range of topics including an introduction to electromagnetic forming (EMF) and its significance in modern metalworking, the principles of the EMF process, which encompasses equipment setup, workpiece deformation mechanisms, and factors influencing process feasibility. It further explores material behavior during EMF, discussing strain rates, temperature rise from adiabatic heating, constitutive material modeling, and changes in microstructure post-deformation. Additionally, the article examines the tools used in EMF, including electromagnetic coil design, process simulation, forming dies, and workholding techniques. The applications of EMF are detailed, focusing on tube and sheet metal forming, hybrid metalworking techniques, and other uses. The conclusion summarizes the advancements and future potential of EMF, while a FAQs section addresses common inquiries about the technique.

Electromagnetic forming (EMF), often referred to as pulsed magnetic forming, represents a cutting-edge non-contact metalworking technique that leverages the principles of electromagnetic induction to shape electrically conductive materials. This innovative method employs powerful Lorentz forces, allowing for high-speed fabrication processes without mechanical contact. EMF is particularly effective for forming hollow profiles, sheet metals, and tubular components from highly conductive materials like copper, aluminum, and low-carbon steel.

The fundamental operation of EMF involves generating high-intensity pulsed magnetic fields, which are produced by discharging large capacitors through a coil situated near the workpiece. This process induces eddy currents within the workpiece, creating a repulsive magnetic field. The interaction of these opposing magnetic fields generates volume forces capable of overcoming the yield strength of the material, resulting in rapid and high-speed deformation.

EMF finds extensive application in shaping and joining operations, enabling tasks such as compressing or expanding hollow tubes, forming flat or pre-formed sheet metals, and facilitating the calibration and assembly of components. While its initial applications were limited to smaller parts, advancements in multi-stage EMF techniques now enable the fabrication of larger flat sheets and hollow body sections. The benefits of EMF over conventional mechanical forming are substantial, offering enhanced material formability without issues like necking or cracking, reduced springback, and preservation of surface coatings through contact-free processing.

Google searches for “electromagnetic forming” have increased dramatically in recent months. This surge in online interest corresponds with innovations in the field of high-speed metal shaping using pulsed magnetic forces. As non-contact forming techniques like electromagnetic forming continue advancing, they open new opportunities across industries to manufacture parts rapidly while pushing material limits.

Searches from the industrial engineering sector dominate overall search volume for information on electromagnetic forming applications and process modeling. Academic interest also contributes via ongoing research into electromagnetic metalworking fundamentals. Geographically, developed economies in Europe and Asia lead in relative search frequency, no doubt spurred by advancing technologies within competitive automotive and fabrication aérospatiale industries demanding novel fabrication solutions.

Looking ahead, electromagnetic forming interest may grow further still as additive manufacturing expands and hybrid techniques blending 3D printing with non-contact forming emerge. With continued scientific understanding of electromagnetic deformation mechanics coupling to finite element modeling, opportunities to realize once impossible part geometries through electromagnetic processing will only expand in the years to come.

Electromagnetic Forming Process Principles

Equipment Setup for EMF

A typical EMF system consists of several key components: an energy storage and control unit housing high-voltage capacitors, a discharging switch, control electronics, and an electromagnetic coil converter. Additionally, a workstation is used to insert the workpiece into the coil. The setup and adjustment of these parts are basic for accomplishing proficient and compelling shaping.

The energy stockpiling unit is liable for gathering electrical energy, which is then released through the curl. The curl configuration can change in view of the particular application, impacting the attractive field qualities and the subsequent distortion of the workpiece.

. Accurate control of the discharge timing and duration is essential to optimize the forming process.

Workpiece Deformation Mechanism

During the release stage, the high curl flows actuate swirl flows in the adjoining workpiece by means of electromagnetic enlistment. These prompted flows create restricting attractive fields, which apply Lorentz powers on the workpiece. When the magnitude of these forces exceeds the yield strength of the material, rapid deformation occurs. The resulting velocities can reach hundreds of meters per second, allowing for high-speed forming that is not achievable through conventional methods.

Most of the deformation occurs after the initial impulse, as the kinetic energy imparted to the workpiece drives its plasticity. This high-speed process minimizes the time available for heat dissipation, leading to significant temperature increases within the material, which must be considered in the design of the forming parameters.

Factors Determining Process Feasibility

The feasibility of EMF is influenced by several factors, including the electrical conductivity of the workpiece material. For instance, materials like steel may require a conductive driver to enhance their suitability for EMF. Also, the effectiveness of the cycle is impacted by the distance between the loop and the workpiece; limiting the air hole is critical for augmenting the energy move from the curl to the workpiece.

It is vital to take note of that main a little part of the energy put away in the capacitors is changed over into plastic disfigurement. A lot of energy is disseminated as intensity inside the workpiece, requiring a cautious harmony between energy info and deformity yield.

Material Behavior in EMF

Strain Rates and Velocities in EMF

One of the main attributes of EMF is the incredibly high strain rates it produces, which can go from 10310^3103 to 104 s−110^4 104s−1. The resultant speeds of the workpiece can arrive at many meters each second, permitting materials to enter a hyperplastic system where their formability is essentially improved contrasted with semi static shaping cycles. In this regime, the likelihood of failure due to necking or cracking is greatly reduced, enabling the shaping of materials that would typically be challenging to form using traditional methods.

Temperature Rise from Adiabatic Heating

The fast idea of EMF likewise prompts significant adiabatic warming inside the workpiece. As plastic disfigurement happens, a significant piece of the work done on the material is changed over completely to warm. This climb in temperature can impact the material’s stream conduct, requiring precise prescient models to expect the consequences for yield strength and pliability.Analytic models of temperature rise take into account the strain-dependent flow behavior of materials, enabling engineers to design processes that optimize material performance during forming.

Constitutive Material Modeling

To accurately predict the behavior of materials during EMF, extensive experimental data is needed to establish flow curves across a range of strain rates and temperatures. Models such as the Johnson-Cook model are frequently employed to capture the dependency of yield stress on strain, strain rate, and temperature. These constitutive models can be integrated into finite element (FE) simulations to simulate local stress-strain states, providing insight into the material behavior under high-speed forming conditions.

Material Microstructure After EMF

Post-deformation analysis of materials formed via EMF reveals significant changes in microstructure. Metallographic examinations of dynamically compressed samples show an increase in dislocation density, accompanied by the formation of adiabatic shear bands at failure points. These microstructural changes differ markedly from those observed in quasi-static processes, highlighting the need for tailored approaches to material characterization and analysis when using EMF.

Tools for EMF

Electromagnetic Coil Design

The plan of the electromagnetic loop is basic to the progress of EMF. Different loop calculations are used relying upon the particular application: helical curls are normally utilized for packing rounded workpieces, while level or winding curls are utilized for sheet metal shaping. An optimal coil design must balance magnetic field uniformity with the minimization of air gaps to enhance pressure efficiency. Furthermore, the integration of flux concentrators can amplify the magnetic fields without necessitating an increase in stored energy, improving the overall efficiency of the forming process.

Process Simulation and Modeling

Limited component examination (FEA) assumes an imperative part in the plan and streamlining of EMF processes. By coupling electromagnetic, warm, and underlying investigations, FEA can precisely display beat loop flows, incited swirl flows, electromagnetic tensions, temperature increase, and stress-strain states inside the workpiece. Parametric studies conducted through simulation allow engineers to explore various coil and workpiece parameters, leading to the optimization of the forming process and enhanced material performance.

Forming Dies for EMF

The development of forming dies specifically for EMF applications is another critical aspect of the technology. Partial forming dies are used to focus electromagnetic forces on targeted regions of the workpiece, while complex geometries may necessitate multi-step forming using multiple coils or dies. Tool materials must be selected carefully to withstand the extreme loads associated with EMF while also allowing for economical repair and replacement when needed.

Workholding and Actuation

The effective positioning of workpieces within the coils is essential for successful EMF operations. Workstations utilize specialized fixtures and robotic shuttling systems to ensure precise alignment during the forming process. Moreover, actuators are employed to integrate EMF into automated production systems, synchronizing magnetic impulses with part feeding cycles. This capability allows for high-speed production rates, with operations occurring at hundreds of parts per minute.

Applications of EMF

Tube Forming via EMF

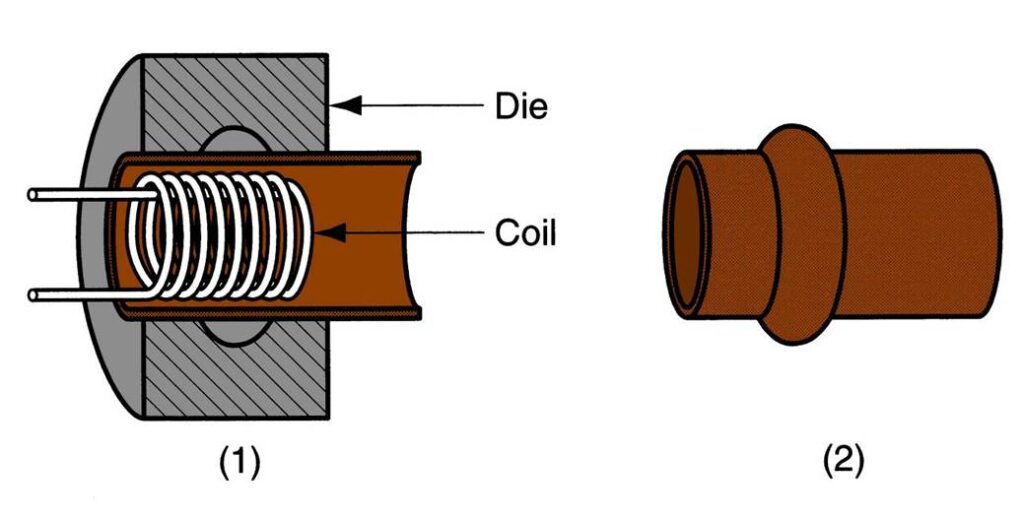

EMF is particularly well-suited for the forming of axisymmetric tubular components. The process can be employed for compression joins, where tubes are formed around solid mandrels, or for expansion applications, where tubing is inserted into molds with intimate contact. Critical process parameters such as frequency, stand-off distance, and coil geometry can be adjusted to tailor the mechanical properties of the joints produced.

Sheet Metal Forming with EMF

In the context of sheet metal forming, EMF can overcome some of the limitations associated with uniform-pressure coils typically used in traditional forming processes. Sequential or incremental EMF forming allows for the gradual shaping of large flat sheets, enabling the production of complex parts without exceeding the voltage or current ratings of the system.

Hybrid Metalworking Techniques

The integration of EMF with other forming processes can significantly enhance overall efficiency and material performance. For example, EMF can be combined with hydroforming, extrusion, and roll forming to exploit the anisotropic behavior of materials. By strategically sequencing these methods, manufacturers can extend the forming limits and achieve complex geometries while capitalizing on the strengths of each technique.

Other EMF Applications

Beyond traditional forming applications, EMF has demonstrated versatility in enabling other manufacturing processes, such as electromagnetic pulse welding, which utilizes controlled magnetohydrodynamic impact for joining materials. Additionally, EMF finds utility in incremental sheet forming, magnetic pulse straightening, and hyperplastic cutting of conductive materials. The ability to handle geometric and material variability economically makes EMF an attractive option for series production environments.

Conclusion

Pulsed magnetic forming through EMF represents a significant advancement in non-contact high-speed fabrication techniques. The benefits of this method, including enhanced material formability, reduced risk of defects, and preservation of surface coatings, make it a valuable tool in modern metalworking. Continuous technological advancements are paving the way for the industrial-scale implementation of EMF across a wide range of joining, shaping, and manufacturing applications.

Ongoing research and development, coupled with sophisticated process modeling, are essential for further extending the boundaries of electromagnetic metal forming. As industries continue to seek efficient, precise, and versatile fabrication techniques, EMF stands poised to play a pivotal role in the future of advanced manufacturing.

FAQ

Q:What is electromagnetic forming?

A: Electromagnetic forming is a high-speed metal fabrication technique that uses pulsed magnetic fields to deform conductive workpieces without requiring mechanical contact. Strong eddy currents induced in the workpiece interact with magnetic fields to exert Lorenz forces that can permanently shape the metal.

Q: What materials can be formed using EMF?

A: Electromagnetic forming is best suited to highly conductive materials like copper, aluminum, and low-carbon steel alloys. However, non-conductive materials can potentially be formed if held within a conductive carrier joined to the metal substrate. The workpiece resistivity influences penetration depth of magnetic pressures.

Q: How are pulsed magnetic fields generated?

A: Large capacitor banks are rapidly discharged through an electromagnetic coil placed near the workpiece. This creates an intense but short-lived magnetic field capable of accelerating plastic deformation at extremely high strain rates. Only a small fraction of stored energy goes toward actual forming while the remainder dissipates as heat.

Q: What is the deformation mechanism?

A: Lorenz forces induced within milliseconds accelerate workpieces to hypervelocities exceeding 100 m/s. Further plastic work occurs as this kinetic energy is imparted into the material microstructure post-pulse. Strain rates reach thousands per second versus quasi-static forming.

Q: How do material properties influence forming?

A: Materials strain harden and thermally soften under adiabatic heating induced at such brief durations. Constitutive models accounting for strain-rate and temperature sensitivity better predict forming results from electromagnetic pulses.
